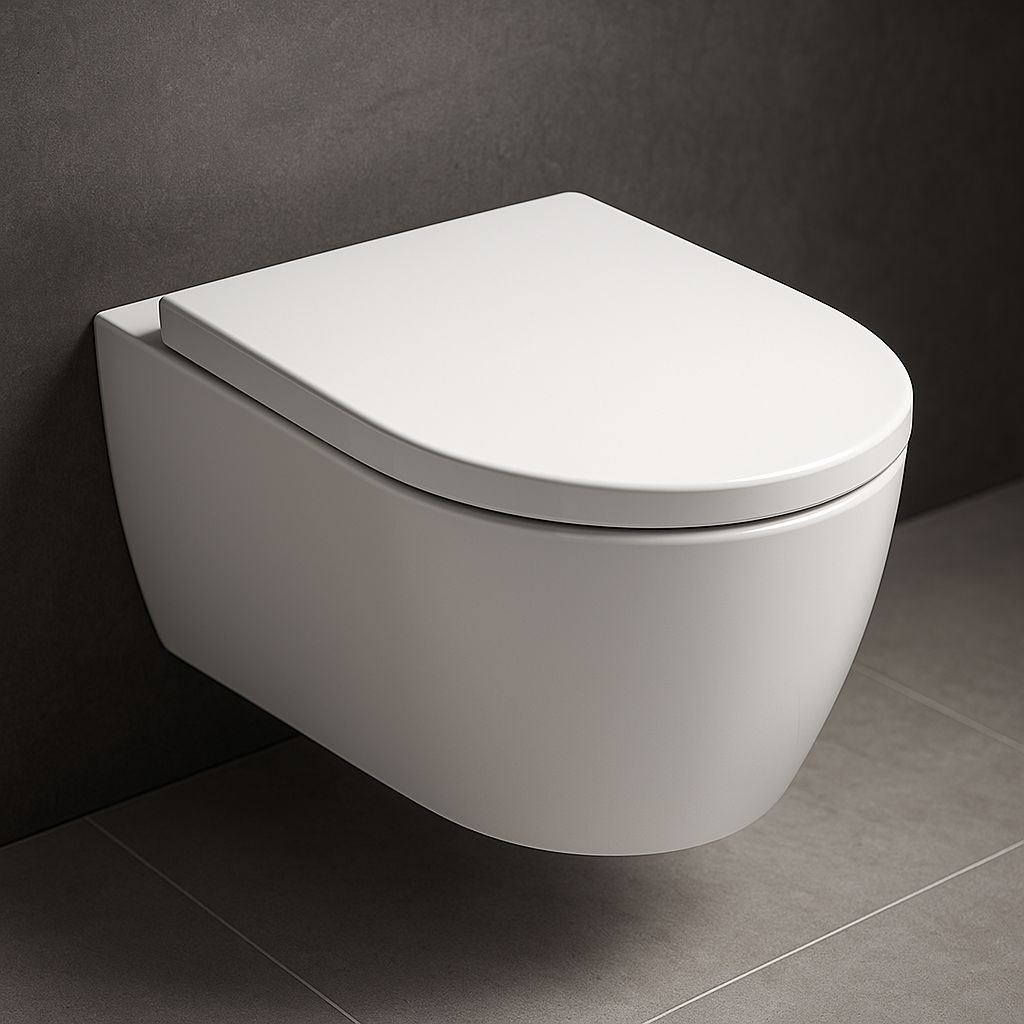

Geberit iCon Rimfree Wall-Hung Toilet Pack with Antibacterial Soft-Close Seat and Lockable, Detachable Hinges

Usage

• For concealed cisterns

Technical Features

• Rimfree flush technology: A streamlined wall-hung toilet bowl with hollow base.
• Type 1, total volume of 6/5/4 L, compliant with EN 997.
• Bowl flush volume: 4 L.
• Hidden fixations: Easy installation with the Easy Fast Fixing system (EFF3 type).
• Fixation spacing: 18 cm.

Antibacterial Duroplast Toilet Seat

• Soft-close duroplast seat, detachable, antibacterial, slim design, non-covering.
• Hinges equipped with EasyMount, QuickRelease, and lockable features.
• Top-mounted seat fixations.
• Enhanced hygiene: Fewer bacteria on the seat for a cleaner environment.
• Easy maintenance: Dirt and germs adhere less easily.
• Comfortable use: Ideal for high-traffic areas or hygiene-conscious settings (homes, hospitals, schools, etc.).

Toilet Bowl Installation Guide

Key Installation Steps:

1. Measurement "A"
   • Measure the distance between the bowl edge and the axis of wall fixations.
2. Adjusting Threaded Rods
   • Screw rods to the exact depth = A + 2 cm. Ensure rods are straight and in good condition.
3. Installing Anchors and Screws
   • Insert anchors into the wall and tighten screws properly in a straight line.
4. Positioning the Bowl
   • Slide the bowl onto the threaded rods. The bowl should rest perfectly against the wall (no gaps).

Toilet Seat Installation Instructions

Anti-Vandalism Protection

Watch Video

KeraTect Material

Watch Video

Delivery Contents

• Toilet bowl
• Soft-close toilet seat
• Fixation material
• Installation manual
