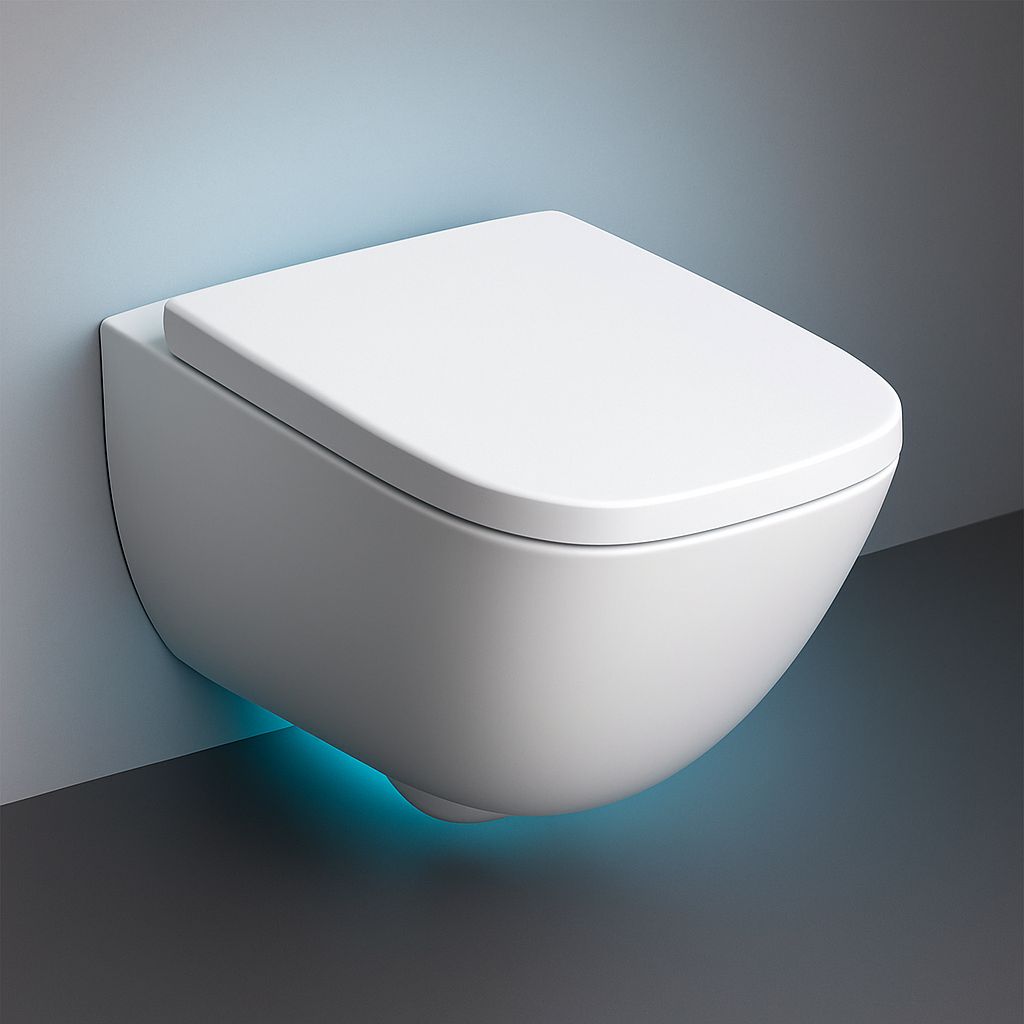

Geberit Premium Square Rimfree Wall-Hung Toilet Set with Concealed Fixings and Detachable Antibacterial Soft-Close Seat

Usage

• Designed for concealed cisterns

Technical Features

• Rimfree WC bowl with rinsing technology and hollow base
• Type 1, total volume 6/5/4 L, compliant with EN 997
• Bowl rinsing with a volume of 4 L
• Concealed fixings, easy to install with Easy Fast Fixing system (type EFF3)
• Fixing distance: 18 cm

Duroplast Antibacterial Toilet Seat

• Soft-close duroplast WC seat, detachable, antibacterial, slim design
• Hinges made of chrome-plated brass
• Tool-free detachable WC seat
• Top-mounted seat fixings
• Enhanced hygiene: fewer bacteria on the seat for a cleaner environment
• Easy maintenance: dirt and germs adhere less easily
• Comfortable use: ideal for high-traffic areas or hygiene-conscious individuals (homes, hospitals, schools, etc.)

Toilet Bowl Installation Guide

Key installation steps:

1. Measurement "A"
   • Measure the distance between the bowl edge and the axis of the wall fixings.
2. Adjusting threaded rods
   • Screw the rods to the exact depth = A + 2 cm. Ensure rods are straight and in good condition.
3. Installing wall plugs and screws
   • Insert wall plugs into the wall, then screw them in properly in a straight line.
4. Positioning the toilet bowl
   • Slide the bowl onto the threaded rods. The bowl should fit perfectly against the wall (without gaps).

Toilet Seat Installation Instructions

• Visual guide provided.

Rinse Diffuser for Optimized Water Flow

• Visual guide provided.

Delivery Contents

• WC bowl
• Soft-close WC seat
• Fixing materials
• Installation guide
