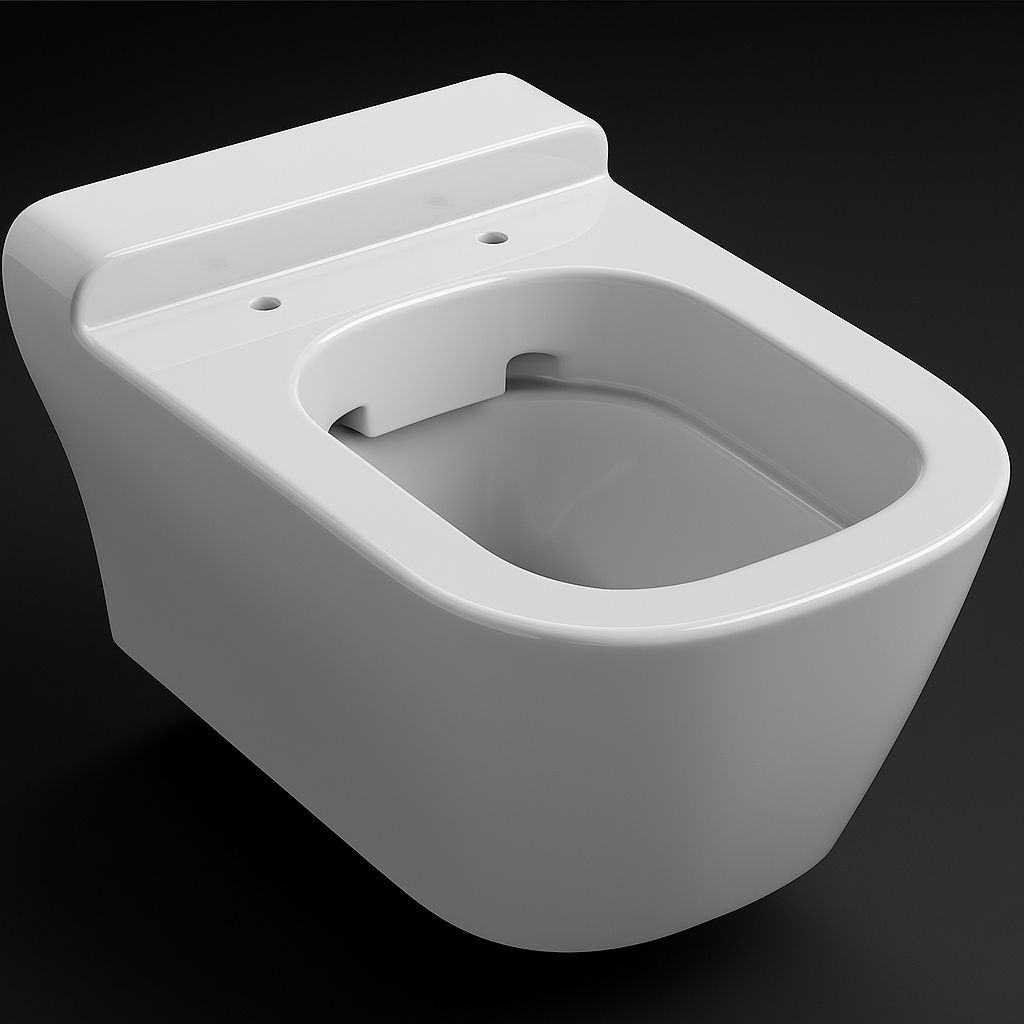

Geberit myDay Wall-Hung Toilet Rimfree KeraTect® with Concealed Fixings

Usage

• For concealed cisterns

Technical Features

• WC bowl with Rimfree flush technology (no rim) and hollow base
• Type 1, total volume 6 / 5 L, according to EN 997
• Bowl flushing with a volume of 4.5 L
• Concealed fixings and easy installation thanks to the Easy Fast Fixing system (type EFF3)
• Fixing distance: 18 cm

Bowl Installation Guide

Key installation steps:

1. Measurement "A"
   Measure the distance between the edge of the bowl and the axis of the wall fixings.
2. Adjusting threaded rods
   Screw the rods to the exact depth = A + 2 cm. Ensure the rods are straight and in good condition.
3. Installing plugs and screws
   Insert plugs into the wall, then screw them straight and securely.
4. Positioning the bowl
   Slide the bowl onto the threaded rods. The bowl should fit perfectly against the wall (without gaps).

Flush Diffuser for Optimized Water Guidance

KeraTect Material

Delivery Contents

• WC bowl
• Installation guide
• Fixing material

Additional Items to Order

• WC seat
