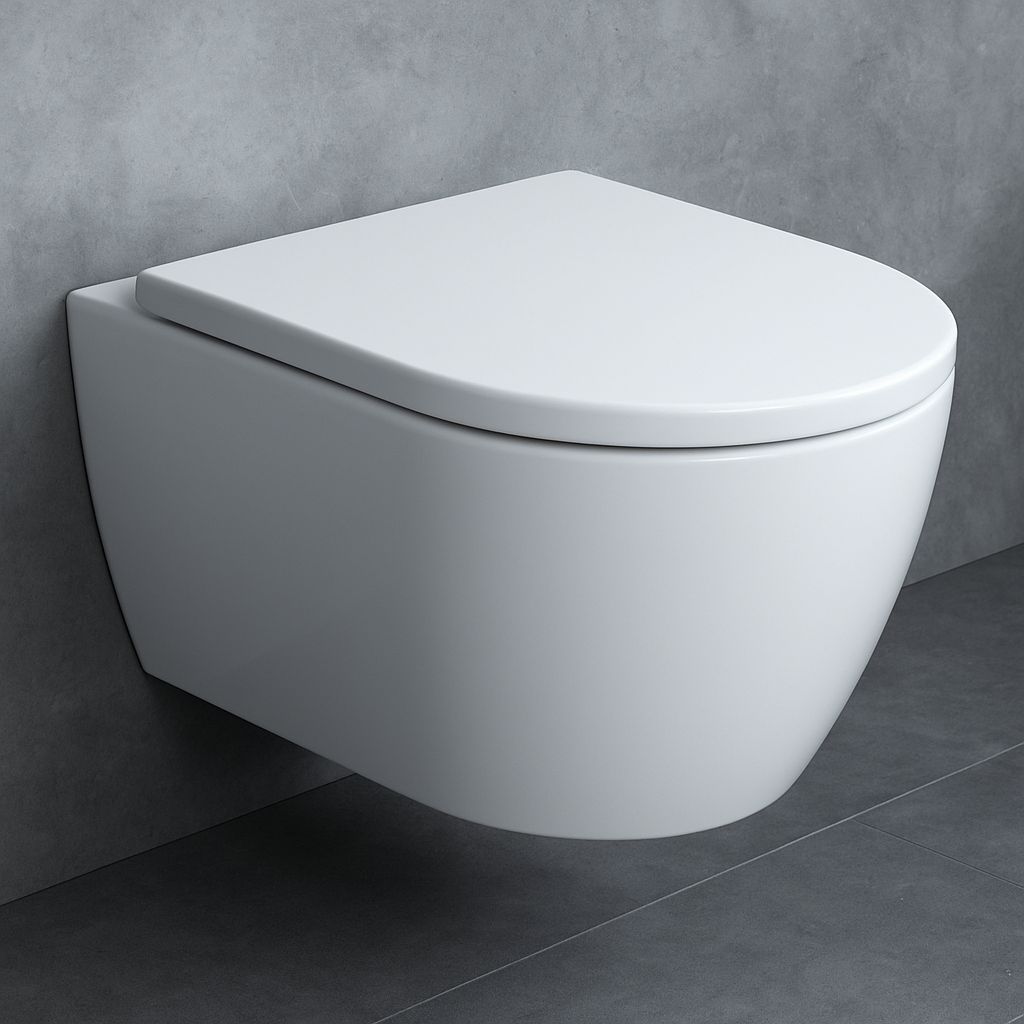

Geberit iCon wall-hung toilet pack, TurboFlush, with antibacterial soft-close seat and lockable hinges

Usage

• For concealed cisterns

Technical Features

• Rimless toilet bowl with TurboFlush flushing technology
• Type 1, total volume 6/5/4 L, according to EN 997
• Bowl flushing with a volume of 4 L
• Hidden fixings and easy installation thanks to the Easy Fast Fixing system (type EFF3)
• Fixing distance: 18 cm

Duroplast antibacterial toilet seat

• Soft-close duroplast toilet seat, detachable, antibacterial
• Toilet seat with EasyMount hinges
• Seat fixings: top-mounted
• Enhanced hygiene: fewer bacteria on the seat, ensuring a cleaner environment
• Easy maintenance: dirt and germs adhere less easily
• Comfort in use: ideal for high-traffic areas or hygiene-conscious individuals (homes, hospitals, schools, etc.)

Toilet bowl installation instructions

Key installation steps:

1. Measurement "A"
   Measure the distance between the edge of the bowl and the axis of the wall fixings.
2. Adjustment of threaded rods
   Screw the rods to the exact depth = A + 2 cm. Ensure the rods are straight and in good condition.
3. Installation of plugs and screws
   Insert the plugs into the wall, then screw correctly in a straight line.
4. Positioning the bowl
   Slide the bowl onto the threaded rods. The bowl should fit snugly against the wall (without gaps).

Toilet seat installation instructions

Refer to the provided image for detailed steps.

Anti-vandalism protection

Watch the video for more details: Anti-vandalism protection.

KeraTect

Watch the video for more details: KeraTect.

Delivery Contents

• Toilet bowl
• Soft-close toilet seat
• Fixing materials
• Installation manual
