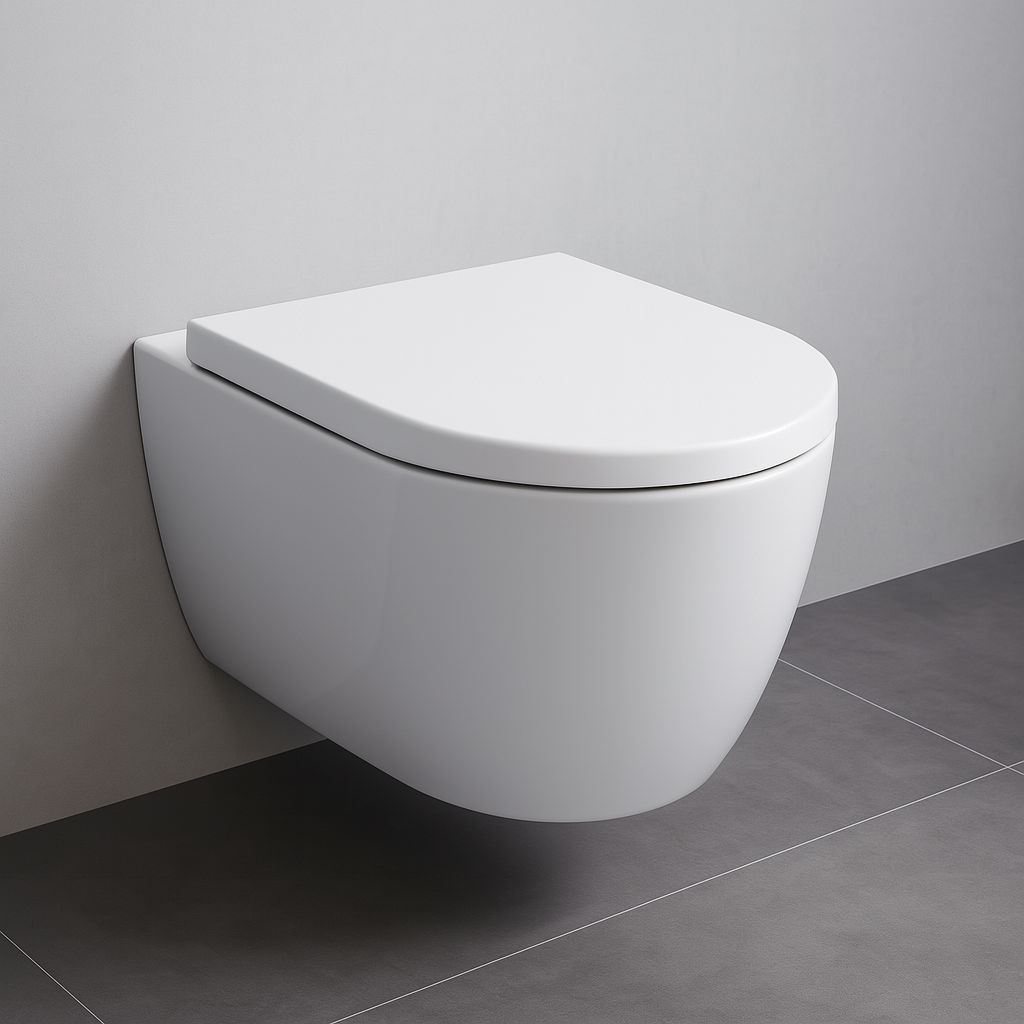

Geberit iCon Wall-Hung Toilet Pack Rimfree White Matte with Hidden Fixings and Soft-Close Antibacterial Seat

Usage

• For concealed cisterns

Technical Features

• Rimfree wall-hung toilet bowl with flushing technology and hollow base
• Type 1, total volume 6/5/4 L, according to EN 997
• Bowl flushing with a volume of 4 L
• Hidden fixings, easy installation with Easy Fast Fixing system (type EFF3)
• Fixing distance: 18 cm

Antibacterial Duroplast Toilet Seat

• Soft-close duroplast toilet seat, detachable, antibacterial, slim design
• Toilet seat with EasyMount, QuickRelease, lockable hinges
• Top-mounted fixings for the seat
• Enhanced hygiene: fewer bacteria on the seat, ensuring a cleaner environment
• Easy maintenance: dirt and germs adhere less easily
• Comfort of use: ideal for high-traffic areas or hygiene-conscious individuals (homes, hospitals, schools, etc.)

Toilet Bowl Installation Instructions

Key installation steps:

1. Measurement "A"
   Measure the distance between the edge of the bowl and the axis of the wall fixings.
2. Adjustment of threaded rods
   Screw the rods to the exact depth = A + 2 cm. Ensure the rods are straight and in good condition.
3. Installation of anchors and screws
   Insert the anchors into the wall, then screw them in properly in a straight line.
4. Positioning the bowl
   Slide the bowl onto the threaded rods. The bowl should rest perfectly against the wall (without gaps).

Toilet Seat Installation Instructions

• Refer to the included diagram for detailed steps.

KeraTect Material

• Watch the video for more details: Link

Delivery Contents

• Toilet bowl
• Soft-close toilet seat
• Fixing materials
• Installation manual
