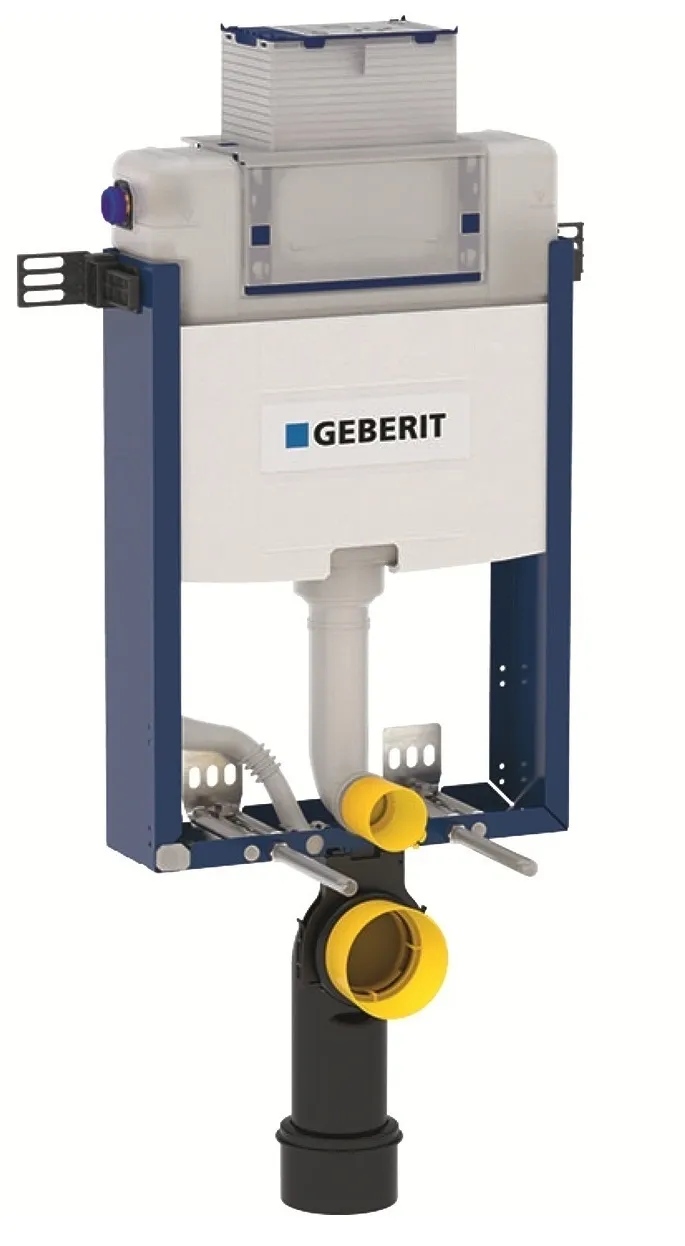

Geberit Combifix Omega Support Frame 12 cm with Top Flush (Height: 98 cm), for Installation in Masonry Walls

Usage

• For masonry walls
• For dual-flush systems
• For wall-hung toilets with connection dimensions according to EN 33:2011
• For installation in partially height-adjustable walls

Technical Features

• Powder-coated mounting frame
• Mounting frame with four fixing brackets
• Adjustable installation depth: 12–20.5 cm
• Front-access tool-free connection elbow fixing
• Concealed cistern with front or top flush operation
• Condensation-insulated concealed cistern
• Immediate post-flush possible with factory settings
• Tool-free maintenance and installation on concealed cisterns
• Side or rear left water supply
• Cuttable access panel cover box
• Includes sleeve for water supply for Geberit AquaClean shower toilets and connection cable
• Electrical connection bracket

Product Details

• Dynamic pressure: 0.1 - 10 bar
• Flush volume, factory setting: 6 and 3 L
• Large flush volume adjustment range: 4 / 4.5 / 6 / 7.5 L
• Small flush volume adjustment range: 2 - 4 L

Advantages of Geberit Support Frame

• Seamless one-piece HDPE concealed cistern
• The cistern base is molded in one piece using a blow-molding process, ensuring consistent strength, a major advantage for concealed installations
• For optimized reliability, each cistern undergoes individual leak testing to ensure no hidden defects in its structure. Internal reinforcements prevent deformation during installation
• Robust steel frame
• Easy access to functional components
• Spare parts availability guaranteed for 50 years
• Simple installation process
• Over 50 years of experience in concealed cisterns

Advantages of Geberit Fill Valve

The fill valve is likely the most sophisticated part of the cistern. Comprehensive tests conducted in Geberit's acoustic lab identified and addressed noise issues caused by traditional fill valves. The water inlet has been designed to minimize noise propagation in the supply line. The extended downpipe ensures silent filling below the water level. Geberit Unifill, classified as acoustic-grade, has earned the NF certification.

To further enhance near-silent soundproofing, Geberit activation systems are equipped with small rubber seals that dampen the noise produced by mechanical components when pressure is applied to the control plate.

Resistance Tests

The cisterns are designed and tested to withstand loads of up to 400 kg.

Quality Control

To ensure impeccable quality, each Geberit concealed cistern undergoes rigorous inspection before shipment. Inside the packaging, you will find a control ticket certifying the exact weight of the product. This document confirms the product has been verified at the factory in accordance with Geberit quality standards, ensuring a reliable, compliant, and ready-to-install product.

Explanation of the Control Ticket:

Top of the Ticket:

• Kontrollabschnitt: Control ticket
• Geberit Prod. GmbH: Geberit Company
• VER0007: Internal process verification code

Product-Specific Data:

• Datum: 10.04.2025 at 22:14 → Date and time of inspection
• Art-Nr: 110.011.00.1 → Article number
• Pers. Nr.: 6281;6327 → ID of the operator who performed the inspection

Weight:

• Soll-Gew.: 1.82 kg → Expected theoretical weight
• Ist-Gew.: 1.82 kg → Measured (actual) weight
• The "N" indicates the measured weight is compliant ("Normal").

Bottom of the Ticket:

• Qualitätsbeleg bei Beanstandung mit Ware zurück. Danke. → "Please return this quality certificate with the product in case of a complaint. Thank you."

Conclusion: This ticket confirms a quality check was performed on April 10, 2025, at 22:14. The measured weight matches the expected weight, indicating the product is compliant. Keep this ticket for any potential claims.
