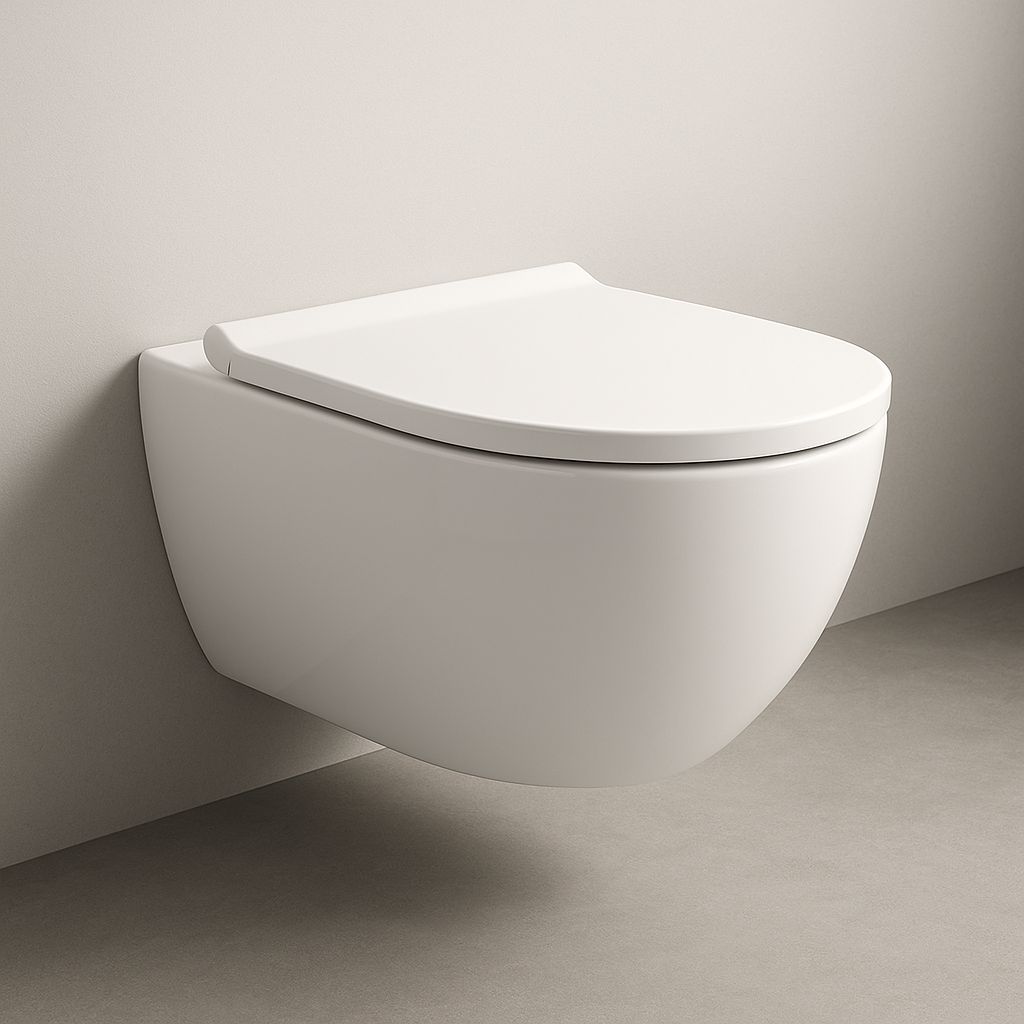

Geberit Acanto Wall-Hung Toilet Pack, TurboFlush, with Auto-Lowering Antibacterial Seat and Lockable Hinges

Usage

• For concealed cisterns

Technical Features

• Rimfree rimless flushing technology and hollow base
• Type 1, total volume 6/5/4 L, according to EN 997
• Bowl flushing with a volume of 4 L
• Hidden fixings and easy installation with Easy Fast Fixing system (type EFF3)
• Mounting distance: 18 cm

Antibacterial Duroplast Toilet Seat

• Soft-close duroplast seat, removable, antibacterial, slim design
• Seat equipped with EasyMount hinges
• Top-mounted seat fixings
• Enhanced hygiene: fewer bacteria on the seat for a cleaner environment
• Easy maintenance: dirt and germs adhere less easily
• Comfort in use: ideal for high-traffic areas or hygiene-conscious individuals (homes, hospitals, schools, etc.)

Toilet Bowl Installation Guide

Key installation steps:

1. Measurement "A"
   Measure the distance between the edge of the bowl and the axis of the wall fixings.
2. Adjusting threaded rods
   Screw the rods to the exact depth = A + 2 cm. Ensure the rods are straight and in good condition.
3. Installing wall plugs and screws
   Insert plugs into the wall and screw correctly in a straight line.
4. Positioning the toilet bowl
   Slide the bowl onto the threaded rods. The bowl should fit snugly against the wall (without play).

Installation Video

• Installation Video

Seat Installation Instructions

TurboFlush System

• TurboFlush System Video

QuickRelease Hinges

• QuickRelease Hinges Video

Anti-Vandalism Protection

• Anti-Vandalism Protection Video

KeraTect

• KeraTect Video

Delivery Contents

• Toilet bowl
• Soft-close toilet seat
• Fixing materials
• Installation instructions
