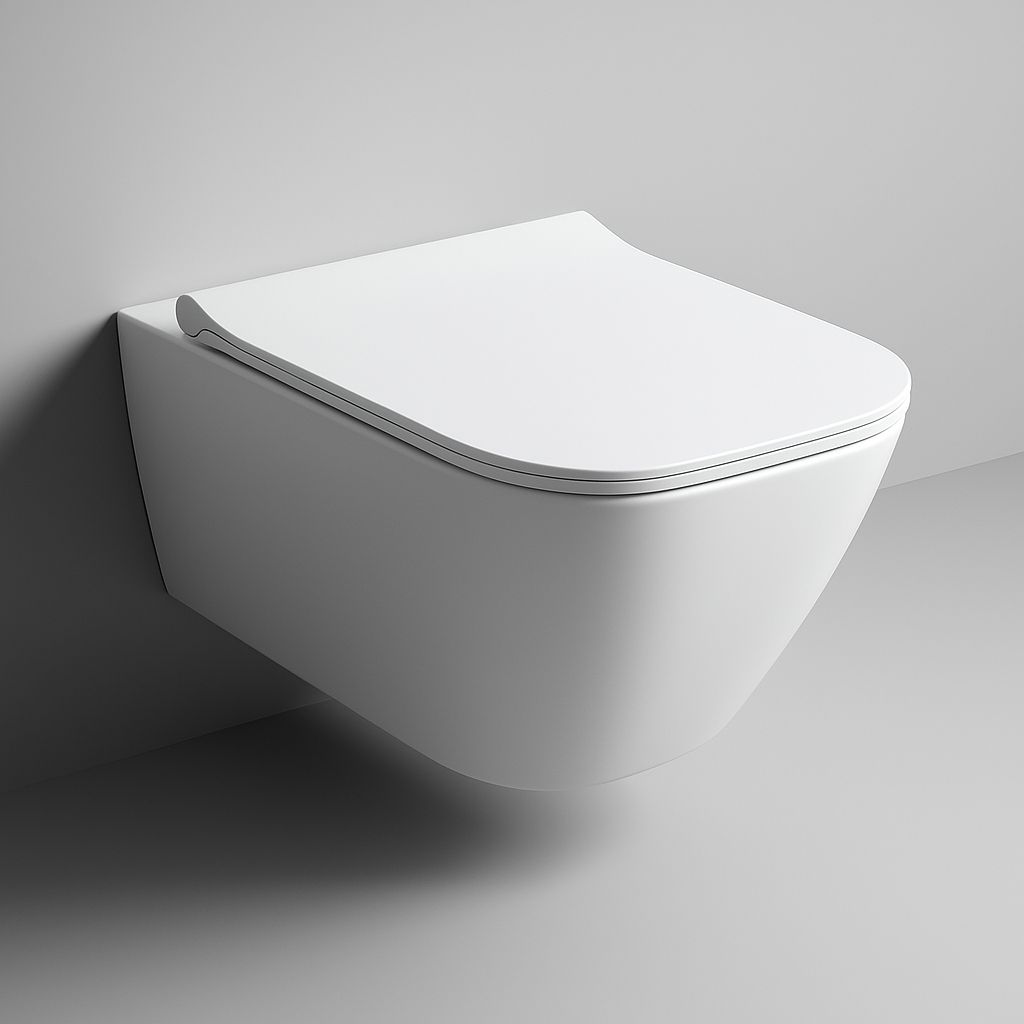

Geberit Smyle Square Wall-Hung Toilet Pack with Rimfree Flush, Hidden Fixings, and Removable Soft-Close Antibacterial Seat

Usage

• For concealed cisterns

Technical Features

• Rimfree flush technology with no rim and a hollow base
• Type 1, total volume 6 / 5 L, according to EN 997
• Bowl flush volume of 4 L
• Hidden fixings, easy to install with Easy Fast Fixing system (type EFF3)
• Fixing distance: 18 cm

Duroplast Antibacterial Toilet Seat

• Soft-close duroplast seat, removable, antibacterial, non-covering with slim design
• Hinges made of chrome-plated brass
• Seat fixings: top-mounted
• Enhanced hygiene: fewer bacteria on the seat for a cleaner environment
• Easy maintenance: dirt and germs adhere less easily
• Comfortable use: ideal for high-traffic areas or hygiene-conscious individuals (homes, hospitals, schools, etc.)

Installation Video

Watch the installation video

Toilet Bowl Installation Instructions

Key installation steps:

1. Measurement "A"
   Measure the distance between the edge of the bowl and the axis of the wall fixings.
2. Threaded rod adjustment
   Screw the rods to the exact depth = A + 2 cm. Ensure the rods are straight and in good condition.
3. Installation of dowels and screws
   Insert the dowels into the wall, then screw them in correctly in a straight line.
4. Positioning the bowl
   Slide the bowl onto the threaded rods. The bowl should fit perfectly against the wall (without gaps).

Seat Installation Instructions

View the seat installation guide

Flush Diffuser for Optimized Water Guidance

See the flush diffuser

Delivery Contents

• Toilet bowl
• Soft-close toilet seat
• Fixing materials
• Installation manual
