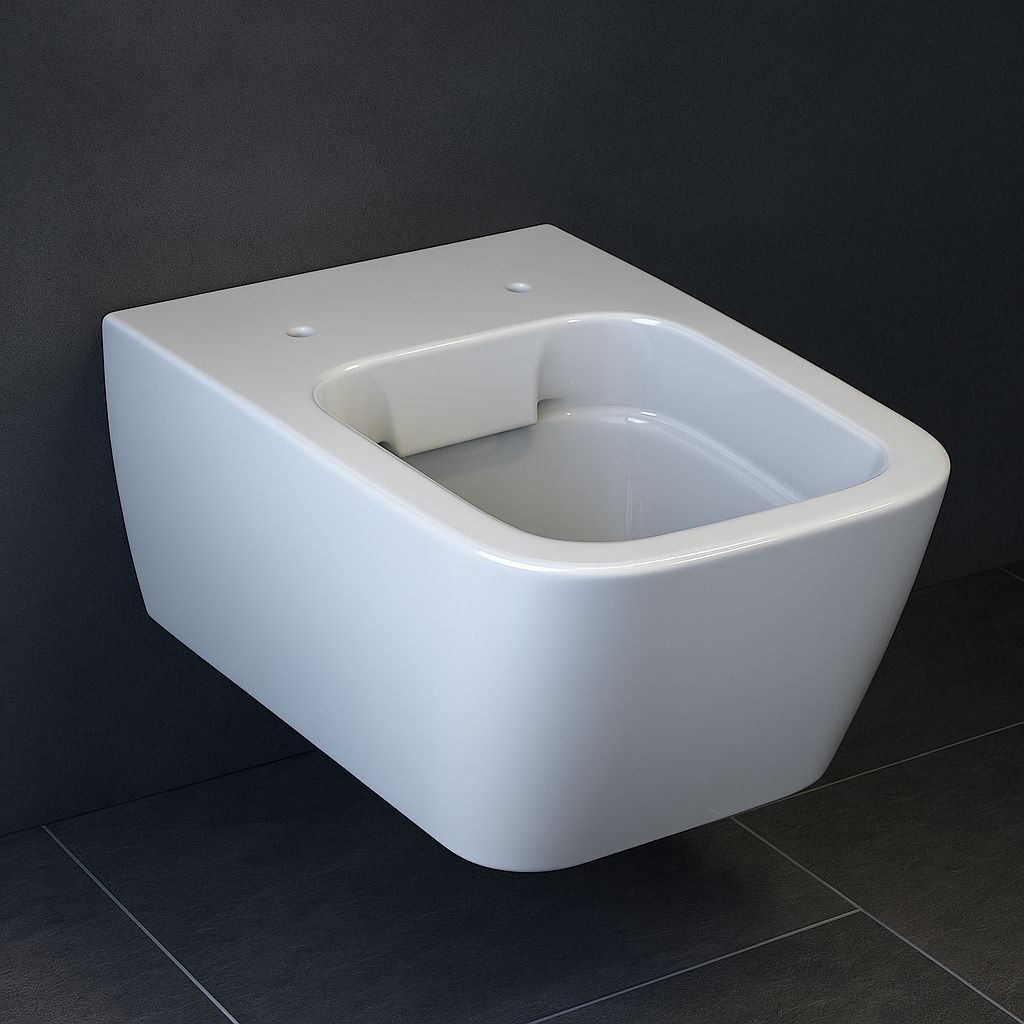

Geberit iCon Square Rimfree Wall-Hung Toilet Bowl with Concealed Fixings

Usage

• For concealed cisterns

Technical Features

• WC bowl with Rimfree flushing technology without rim and hollow base
• Type 1, total volume 6 / 5 L, according to EN 997
• Bowl flushing with a volume of 4.5 L
• Concealed fixings and easy to install thanks to the Easy Fast Fixing system (type EFF3)
• Fixing distance: 18 cm

Bowl Installation Guide

Key installation steps:

1. Measurement "A"
   Measure the distance between the edge of the bowl and the axis of the wall fixings.
2. Adjusting the threaded rods
   Screw the rods to the exact depth = A + 2 cm. Ensure the rods are straight and in good condition.
3. Installing anchors and screws
   Insert the anchors into the wall, then screw them correctly in a straight line.
4. Positioning the bowl
   Slide the bowl onto the threaded rods. The bowl must rest perfectly against the wall (without gaps).

Flushing Diffuser for Water Guidance Optimization

Delivery Contents

• WC bowl
• Installation guide
• Fixing material

To be ordered additionally

• WC seat
