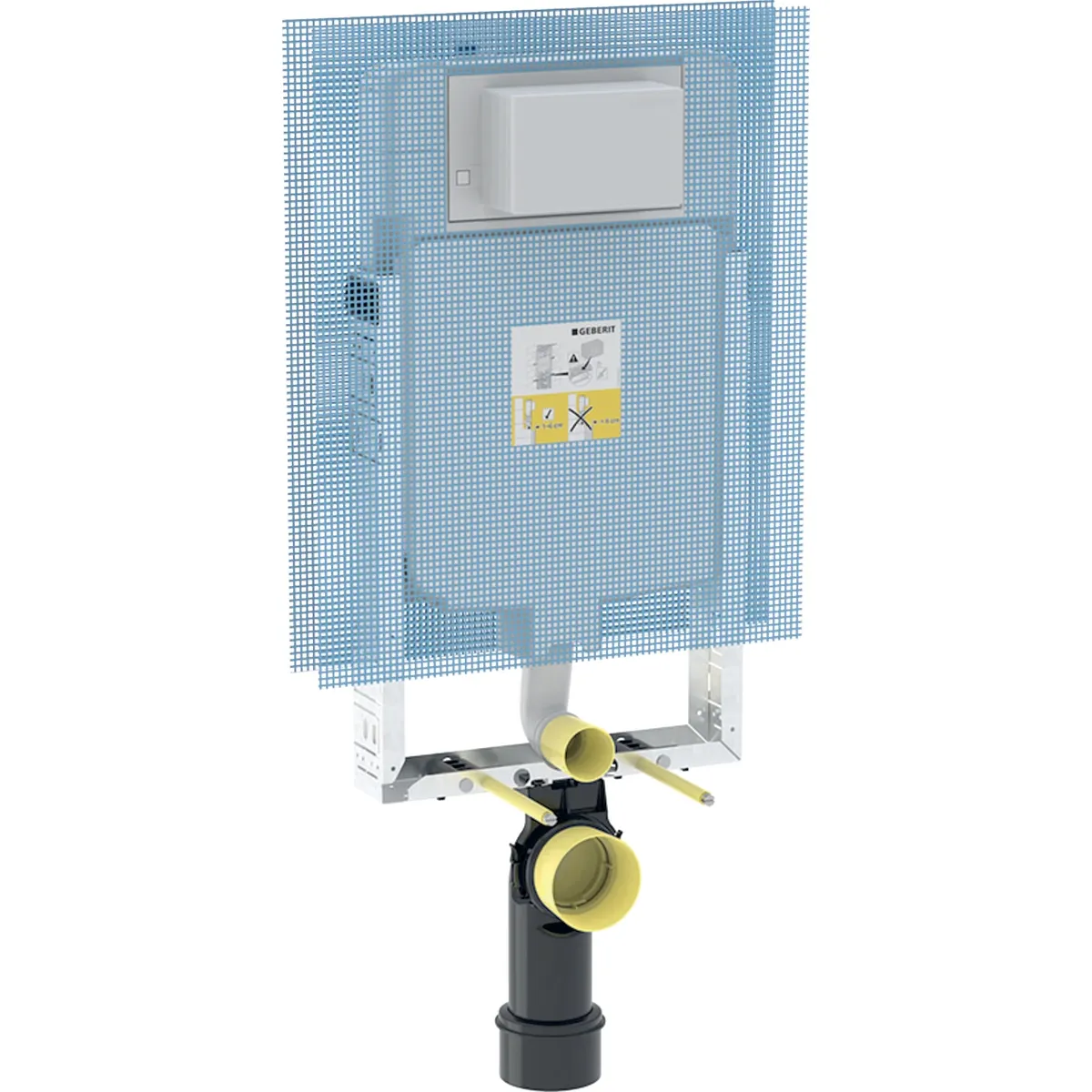

Geberit Combifix Alpha 8 cm Support Frame for Installation in Masonry Walls

Usage

• For masonry walls
• For dual-flush systems
• For installation in full-height or partial-height walls

Technical Features

• Galvanized mounting frame
• Mounting frame with four fixing supports
• Pre-mounted plaster mesh
• Connection elbow can be fixed from the front without tools
• Concealed cistern with front actuation
• Concealed cistern insulated against condensation
• Immediate post-flush possible with factory settings
• Assembly and maintenance of concealed cisterns without tools
• Water supply from the top, offset to the left side
• Flexible connection hose for angle valve, tool-free connection

Product Details

• Dynamic pressure: 0.1 - 10 bars
• Flush volume, factory setting: 6 and 3 L
• Large flush volume, adjustable range: 4 / 4.5 / 6 / 7.5 L
• Small flush volume, adjustable range: 2 - 4 L

Advantages of the Geberit Support Frame

• Seamless monobloc concealed cistern made of HDPE
• The base shell of the support frame is molded in one piece using a blow molding process. The absence of seams ensures consistent strength, a key advantage for concealed installations.
• For optimized reliability, each shell undergoes individual leak tests to ensure no hidden defects. The shell is also designed to withstand external pressure, reinforced internally to prevent deformation during installation.
• Robust steel frame
• Easy access to functional elements
• Spare parts availability guaranteed for 50 years
• Simple installation process
• Over 50 years of experience in concealed cisterns

Advantages of the Geberit Float Valve

The float valve is likely the most advanced part of the cistern. After extensive testing in our acoustic laboratory, we identified and addressed noise issues caused by conventional float valves. The water inlet has been specially designed to minimize noise propagation in the supply pipe. Additionally, the extended downpipe allows for silent filling below the water level. The Geberit Unifill, classified as acoustic class, has received the NF mark.

To further enhance near-silent soundproofing, Geberit actuation systems are mounted on small rubber seals that dampen the noise produced by mechanical elements when pressure is applied to the control plate.

Resistance Testing

The cisterns are designed and tested to withstand loads of up to 400 kg.

Quality Control

To ensure impeccable quality, each Geberit concealed cistern undergoes rigorous checks before shipment. Inside the packaging, you will find a control ticket certifying the exact weight of the piece. This document confirms that the product has been verified in the factory according to Geberit quality standards, ensuring a reliable, compliant product ready for installation.

Control Ticket Breakdown:

• Top of the ticket:
  • Kontrollabschnitt = Control ticket
  • Geberit Prod. GmbH = Geberit Company
  • VER0007 = Internal number or code (process verification code)
• Product-specific data:
  • Date: 10.04.2025 at 22:14 → Date and time of inspection
  • Art-Nr: 110.175.00.1 → Article number
  • Bez.: KF-B WC Alp8 H109 90/110 → Product designation
  • Pers. Nr.: 6281;6327 → ID number of the person (or operator) who performed the inspection
• Weight:
  • Soll-Gew.: 1.82 kg → Expected theoretical weight
  • Ist-Gew.: 1.82 kg → Measured (actual) weight
  • The "N" next to it indicates that the measured weight is compliant ("Normal")
• Bottom of the ticket:
  • Qualitätsbeleg bei Beanstandung mit Ware zurück. Danke. → "Please return this quality ticket with the goods in case of complaint. Thank you."

Conclusion:

This ticket shows that a quality control inspection was performed on April 10, 2025, at 10:14 PM. The measured weight matches the expected weight, indicating that the product is compliant. This ticket should be retained in case of a claim.

Why Choose the Geberit Combifix Alpha Support Frame?

With a weight of 7.13 kg, this support frame is both lightweight and robust, making it easy to install while ensuring durability. Perfect for professionals and DIY enthusiasts, it integrates seamlessly into your renovation or construction projects.
