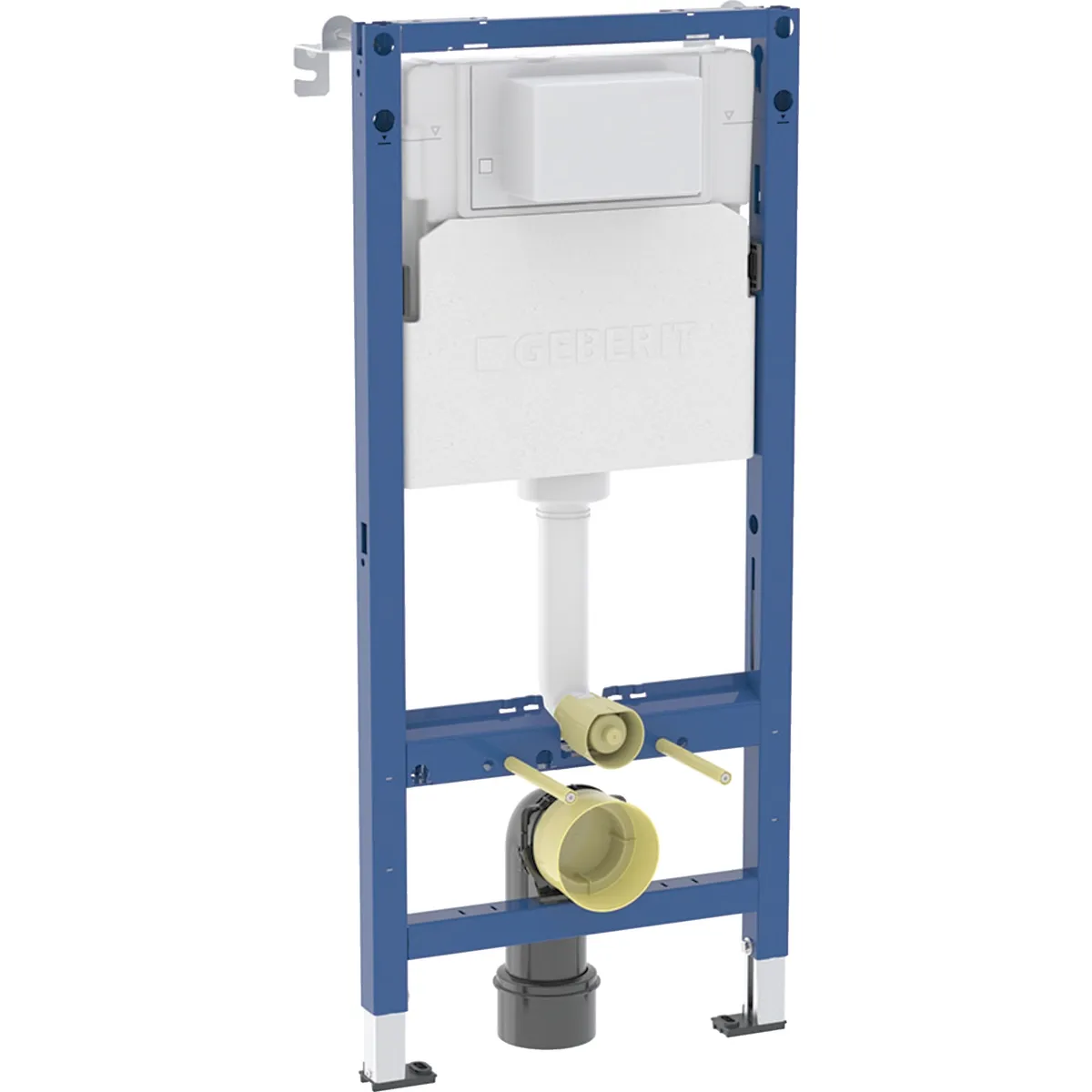

Geberit Duofix Alpha 12 cm Support Frame for Installation in Plaster Walls

Usage

• For drywall construction
• For installation in full-height or partial walls
• For installation on full-height installation walls
• For wall-hung toilets with connection dimensions according to EN 33:2011
• For wall-hung toilets with a projection of up to 62 cm
• For dual flush
• For a screed height of 0–20 cm

Technical Specifications

• Self-supporting powder-coated frame
• Open frame at the top
• Frame prepared for supports of ceramic toilets with a small support surface
• Galvanized support legs
• Adjustable support legs 0–20 cm
• Chassis with drilling hole ø 9 for fixing in wooden construction
• Concealed cistern with front and top actuation
• Insulated concealed cistern against condensation

Delivery Contents

• Geberit Duofix Alpha 12 cm support frame for installation in plaster walls
• Reservation box for inspection hatch that can be cut
• 2 wall fixings
• Connection kit for WC, ø 90 mm
• Connection elbow in PE-HD, ø 90 mm
• Transition sleeve in PE-HD, ø 90 / 110 mm
• 2 protective caps
• 2 M12 threaded rods
• Fixing material

Product Details
| Dynamic Pressure | 0.1 - 10 bars |
| Flush Volume, Factory Setting | 6 and 3 L |
| Large Flush Volume, Adjustment Range | 4 / 4.5 / 6 / 7.5 L |
| Small Flush Volume, Adjustment Range | 2 - 4 L |

Advantages of the Geberit Support Frame

• Monobloc concealed cistern made of PEHD without seams
• The casing that forms the base of the support frame is molded in one piece by a blowing process. The absence of seams ensures constant strength, which is an important advantage for concealed installations
• For optimized reliability, the casings are individually subjected to leak tests. This ensures the absence of any hidden defect in the casing body. It must also withstand external pressure. Therefore, it is equipped with several reinforcements placed inside to prevent any deformation of the tank during installation
• Robust steel chassis
• Easily accessible functional elements
• Availability of spare parts guaranteed for 50 years
• Simple installation
• Over 50 years of experience in concealed cisterns

Advantages of the Geberit Float Valve
The float valve is probably the most sophisticated part of the cistern. After extensive testing in our acoustic laboratory, we have precisely identified and examined the noise nuisances caused by traditional float valves. Ultimately, the water supply has been specially designed to minimize noise propagation in the supply line. The extended down tube also allows for silent filling below the water level. The Geberit Unifill has received the acoustic class certification.
To enhance this near-silent soundproofing quality, Geberit actuation systems are mounted on small rubber seals that dampen the noise produced by mechanical elements when pressure is applied to the control plate.

Resistance Tests
The cisterns have been designed and tested to withstand loads of 400 kg.

Quality Control
To ensure an impeccable quality level, each Geberit concealed cistern undergoes rigorous inspection before shipment. Inside the packaging, you will find a control ticket certifying the exact weight of the piece. This document certifies that the product has been verified in the factory, in accordance with Geberit quality standards. You are thus guaranteed a reliable, compliant product ready for installation.
