Home/Store/Concealed cisterns/Omega concealed cisterns/Réservoirs encastrés Omega
Bâti-support Geberit Combifix Omega 12 cm avec déclenchement par le haut (hauteur réduite : 82 cm), pour montage dans parois
+9
+8
+7
+6
+5
+4
+3
+2

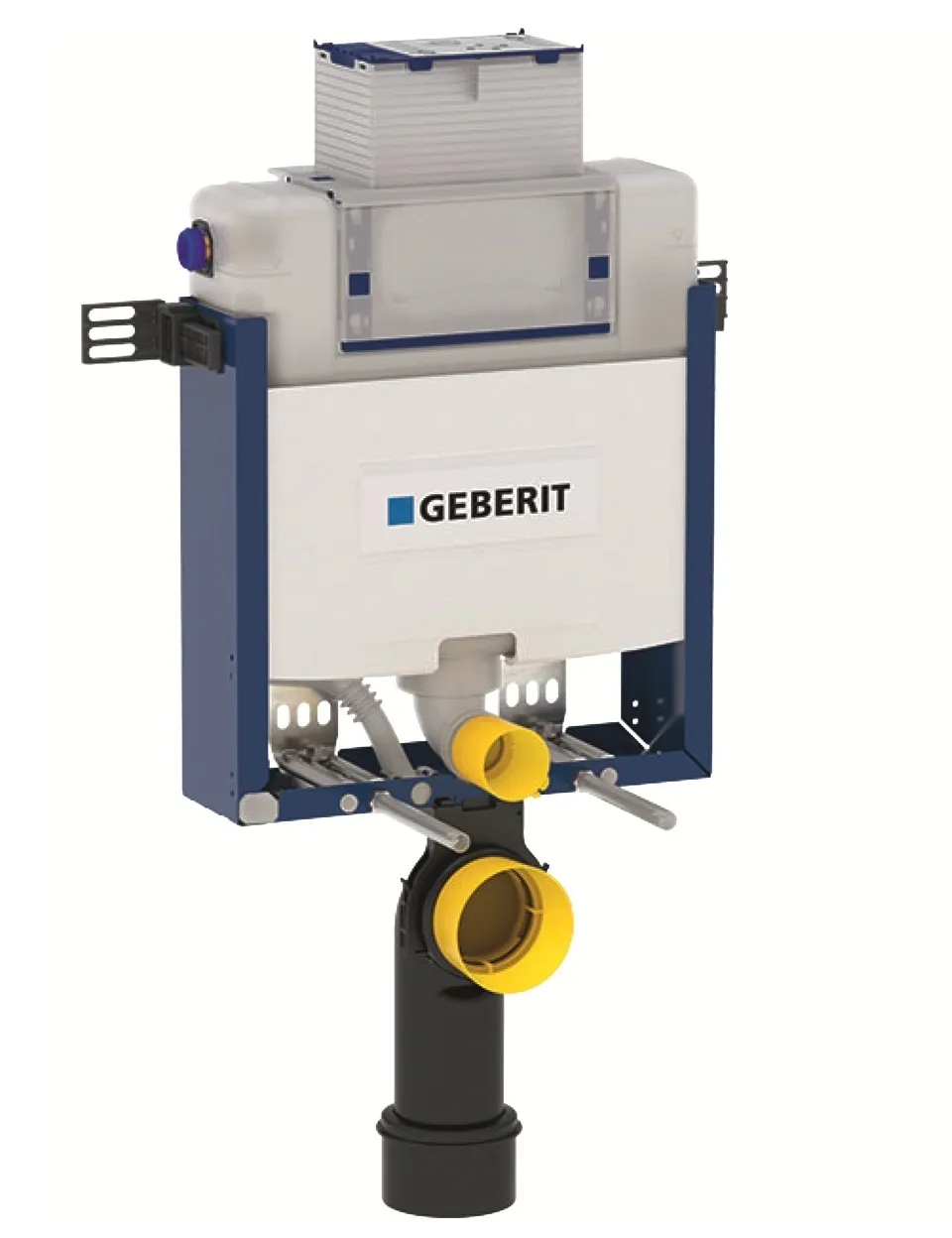

Geberit Combifix Omega Support Frame 12 cm with Top Flush (Reduced Height: 82 cm), for Installation in Masonry Walls

SKU 110.001.00.1
$1 069.97
100% certified waterproofing
Price incl. Sales tax (5.75%) $58.18
Product generally in stock. In case of exceptional shortage, restocking within 12 to 20 weeks.
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it
Geberit Combifix Omega Support Frame 12 cm with Top Flush (Reduced Height: 82 cm), for Installation in Masonry Walls
Product Details
Marque: Geberit
Type de produit: Bâti-support Combifix
Serie: Omega
Epaisseur: 12 cm
Unite: Pièce
Contenu de l'emballage: Bâti-support (sans la plaque de déclenchement)
Disp.: 4
ProDis.: 4
Garant.: 10
PG: 781.079
PR: 748.98
Weight: 7.45 lbs

Usage

  • For masonry walls
  • For dual-flush systems
  • For installation in partial-height wall coverings
  • For wall-hung WCs with connection dimensions according to EN 33:2011

Technical Features

  • Powder-coated mounting frame
  • Mounting frame with four fixing brackets
  • Adjustable installation depth, 12–20.5 cm
  • Connection elbow can be secured from the front without tools
  • Concealed cistern with top or front actuation
  • Condensation-insulated concealed cistern
  • Immediate post-flush possible with factory settings
  • Tool-free maintenance and installation on concealed cisterns
  • Side or rear water supply on the left
  • Reservable housing for inspection hatch
  • Equipped with a sleeve for water supply pipe connection to Geberit AquaClean shower toilets
  • Includes options for electrical connection fittings

Product Details

  • Dynamic Pressure: 0.1 - 10 bars
  • Default Flush Volume: 6 and 3 liters
  • Large Flush Volume Adjustment Range: 4 / 4.5 / 6 / 7.5 liters
  • Small Flush Volume Adjustment Range: 2 - 4 liters

Advantages of the Geberit Support Frame

  • Seamless monobloc concealed cistern made of HDPE
  • The base shell of the frame is molded in one piece using a blow-molding process, ensuring consistent strength due to the absence of welds—an essential feature for concealed installations
  • For optimized reliability, each shell undergoes individual leak testing to ensure no hidden defects. The shell also withstands external pressure due to internal reinforcements preventing deformation during installation
  • Robust steel frame
  • Functional components are easily accessible
  • Spare parts availability guaranteed for 50 years
  • Simple installation process
  • Over 50 years of experience in concealed cisterns

Concealed Cistern

Advantages of the Geberit Float Valve

The float valve is likely the most advanced part of the cistern. After extensive testing in our acoustic laboratory, we identified and minimized noise issues typically caused by standard float valves. The water inlet is specially designed to reduce noise propagation in the supply pipe. Additionally, the extended downpipe ensures silent filling below the water level. The Geberit Unifill, with its acoustic class certification, has been awarded the NF mark.

To further enhance near-silent soundproofing, Geberit actuation systems are mounted on small rubber seals that dampen mechanical noise when pressure is applied to the control plate.

Float Valve

Resistance Testing

The cisterns are designed and tested to withstand loads of up to 400 kg.

Load Testing

Quality Control

To ensure flawless quality, every Geberit concealed cistern undergoes rigorous inspection before shipment. Inside the packaging, you will find a control ticket certifying the exact weight of the item. This document guarantees that the product has been factory-verified in accordance with Geberit quality standards, ensuring a reliable, compliant, and installation-ready product.

Quality Control Ticket Breakdown:

Top of the Ticket:

  • Kontrollabschnitt = Control Ticket
  • Geberit Prod. GmbH = Geberit Company
  • VER0007 = Internal number or process verification code

Product-Specific Data:

  • Date: 10.04.2025 at 22:14 → Inspection date and time
  • Art-Nr: 110.001.00.1 → Article number
  • Pers. Nr.: 6281;6327 → ID number of the operator who performed the inspection

Weight:

  • Soll-Gew.: 1.82 kg → Theoretical expected weight
  • Ist-Gew.: 1.82 kg → Measured (actual) weight
  • The "N" indicates the measured weight is compliant ("Normal")

Bottom of the Ticket:

  • "Qualitätsbeleg bei Beanstandung mit Ware zurück. Danke." → "Please return this quality ticket with the product in case of a complaint. Thank you."

Conclusion:

This ticket confirms that a quality control inspection was conducted on April 10, 2025, at 22:14. The measured weight matches the expected weight, indicating the product is compliant. Keep this ticket in case of a claim.

Quality Control Ticket
