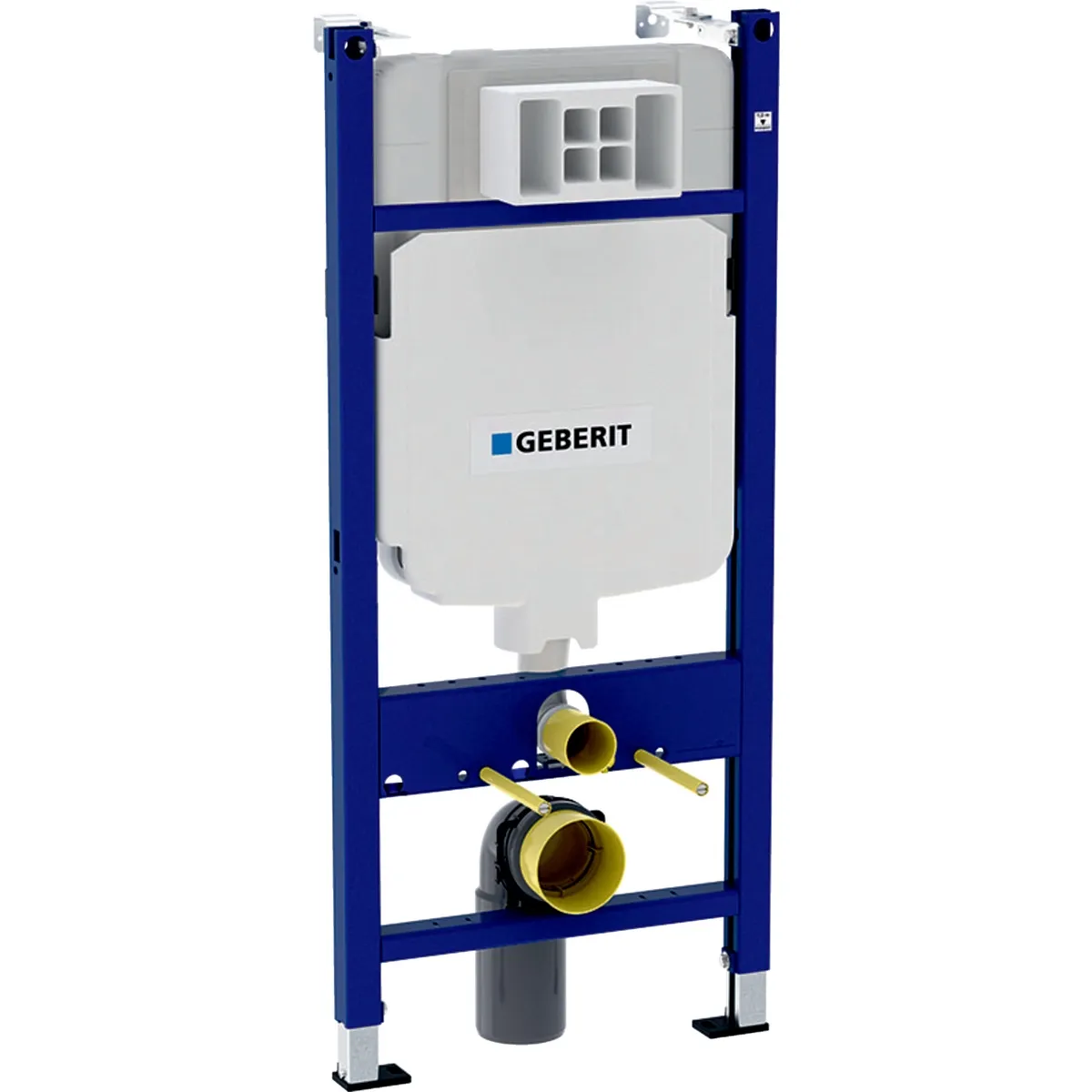

Geberit Duofix Alpha 8 cm support frame for installation in plasterboard walls
SKU 458.176.00.1
$718.71
Sold out
Price incl. Sales tax (5.75%) $39.08
Product generally in stock. In case of exceptional shortage, restocking within 12 to 20 weeks.
Sold out
Save this product for later
Geberit Duofix Alpha 8 cm support frame for installation in plasterboard walls
Product Details
Marque: Geberit
Type de produit: Bâti-support Duofix
Serie: Alpha
Epaisseur: 8 cm
Unite: Pièce
Garant.: 10
PG: 524.655
PR: 503.094
Geberit Duofix Alpha 8 cm support frame for installation in plasterboard walls
Use
- For drywall construction
- For installation in room-height or part-height pre-walls
- For mounting on installation walls at room height
- For wall-hung WCs with connection dimensions according to EN 33:2011
- For wall hung toilets with projection up to 62 cm
- For double touch rinsing
- For screed height of 0–20 cm*
Advantages of the Geberit frame
- Monocoque concealed tank seamless in HDPE
- The shell which constitutes the base of the support frame is molded in one piece by a blow molding process. The absence of welding ensures its constant solidity, which is an important advantage for recessed installations. For optimized reliability, the hulls are subjected one by one to watertightness tests. This ensures that there are no hidden defects in the hull body. It must also be able to withstand external pressure. It is therefore equipped with several reinforcements, placed inside, which prevent any deformation of the tank during installation.
- Sturdy steel frame
- Designed to withstand a load of 400 kg
- Easy to access functional elements
- Availability of spare parts guaranteed for 25 years
- Simple installation
- Over 50 years of experience in concealed cisterns
Geberit float valve - For silent operation
The float valve is probably the most elaborate part of the tank. Following very extensive tests carried out in our acoustic laboratory, we have identified and precisely examined the noise pollution caused by conventional float valves. Finally, the water inlet was specially designed to minimize the propagation of noise in the supply line. The extended drop tube also allows silent filling below the water level. Of acoustic class, Geberit Unifill has received the NF mark.
In order to reinforce this near-silent quality of soundproofing, Geberit trigger systems are mounted on small rubber seals that muffle the noise produced by the mechanical elements when pressure is exerted on the control plate.
Geberit concealed cisterns - Resistance test
The tanks have been designed and tested to withstand loads of 400 kg.
Features
- Self-supporting thermo-lacquered frame
- Frame open at the top
- Frame prepared for WC ceramic supports with small support surface
- Galvanized support feet
- Adjustable support feet 0–20 cm
- Minimum depth to the center of the connection bend 9 cm
- Concealed cistern with front actuation
- Concealed cistern insulated against condensation
Product details
| Dynamic pressure | 0,1 - 10 bars |
| Flush volume de chasse, factory setting | 6 and 3 L |
| Large flush volume, adjustment range | 4,5 / 6 / 7,5 L |
| Small flush volume, adjustment range | 3 - 4 L |
Delivery contents
- R 1/2" supply, MF compatible, with integrated angle valve and handwheel
- Reserve box for inspection hatch, in polystyrene foam
- 2 wall brackets
- Connection set for WC, ø 90 mm
- PE-HD connection elbow, ø 90 mm
- PE-HD transition sleeve, ø 90 / 110 mm
- 2 protective caps
- 2 M12 threaded rods
- Fastening material
Accessories
- Geberit Duofix WC ceramic support set with small support surface
- Geberit Duofix wall bracket set for individual mounting
