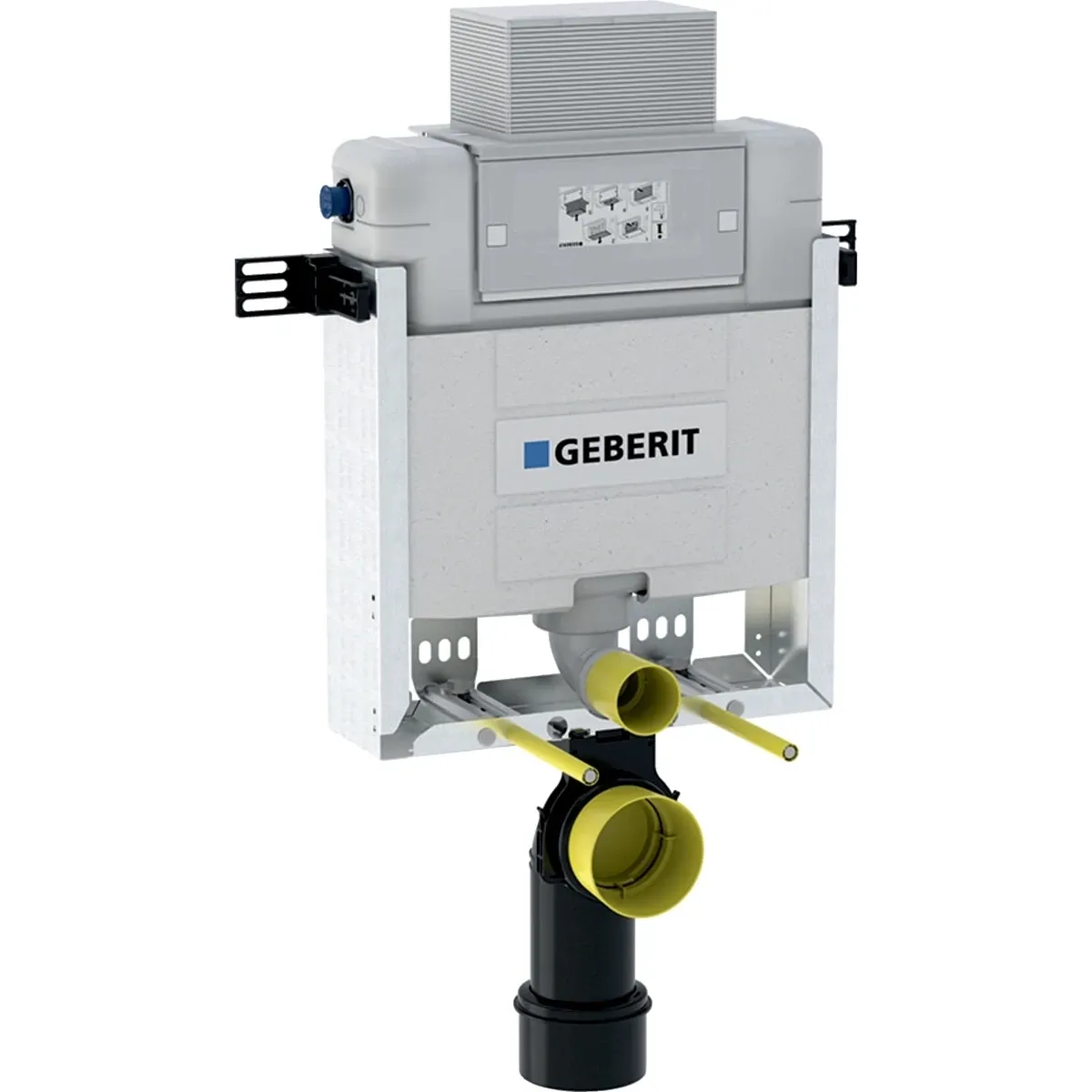

Geberit Combifix Alpha 12 cm Support Frame (Height 82 cm), for Installation in Masonry Walls

Usage

• For masonry walls
• For installation in half-height pre-wall setups
• For wall-hung toilets with connection dimensions according to EN 33:2011
• For dual-flush systems

Technical Features

• Galvanized mounting frame
• Mounting frame with four fastening connectors
• Connection elbow can be fixed from the front without tools
• Concealed cistern with front or top actuation
• Cistern insulated against condensation
• Immediate post-flush possible with factory setting
• Installation and maintenance work on the concealed cistern without tools
• Adjustable installation depth: 12 - 20.5 cm
• Water supply connection on the left side or rear
• Breakable cover plate for inspection opening

Product Details

• Dynamic Pressure: 0.1 - 10 bars
• Flush Volume (factory setting): 6 and 3 liters
• Large Flush Volume (adjustable range): 4 / 4.5 / 6 / 7.5 liters
• Small Flush Volume (adjustable range): 2 - 4 liters

Advantages of the Geberit Support Frame

• Seamless monobloc concealed cistern in HDPE
• The frame base is molded in one piece using a blow-molding process, ensuring constant strength and reliability for concealed installations.
• Each frame undergoes individual leak tests to ensure no hidden defects. Internal reinforcements prevent deformation during installation.
• Robust steel chassis
• Easily accessible functional components
• Spare parts available for 50 years
• Simple installation
• Over 50 years of experience in concealed cisterns

Advantages of the Geberit Float Valve

The float valve is one of the most sophisticated components of the cistern. After extensive testing in our acoustic lab, we precisely identified and addressed the noise issues caused by conventional float valves. The water inlet was specially designed to minimize noise propagation in the supply pipe. The extended downpipe also allows for silent filling below water level. The Geberit Unifill, certified with NF marking, meets acoustic class standards.

To further enhance near-silent soundproofing, Geberit actuation systems are mounted on small rubber seals that dampen the noise produced by mechanical elements when pressure is applied to the control plate.

Resistance Tests

The cisterns are designed and tested to withstand loads of up to 400 kg.

Quality Control

To ensure impeccable quality, each Geberit concealed cistern undergoes rigorous testing before shipment. Inside the packaging, you will find a control ticket certifying the exact weight of the product. This document confirms that the product has been inspected at the factory in accordance with Geberit's quality standards, guaranteeing a reliable, compliant, and ready-to-install product.

Explanation of the Quality Control Ticket:

Top of the Ticket:

• Kontrollabschnitt = Control ticket
• Geberit Prod. GmbH = Geberit Company
• VER0007 = Internal number or process verification code

Product-Specific Data:

• Datum: 10.04.2025 at 22:14 → Date and time of inspection
• Art-Nr: 110.212.00.1 → Article number
• Pers. Nr.: 6281;6327 → Identification number of the inspector

Weight:

• Soll-Gew.: 1.82 kg → Expected theoretical weight
• Ist-Gew.: 1.82 kg → Measured (actual) weight
• "N" indicates that the measured weight is compliant ("Normal")

Bottom of the Ticket:

• Qualitätsbeleg bei Beanstandung mit Ware zurück. Danke. → "Please return this quality ticket with the product in case of a claim. Thank you."

Conclusion:

This ticket shows that a quality control check was performed on April 10, 2025, at 10:14 PM. The measured weight matches the expected weight, confirming product compliance. Keep this ticket in case of any claims.
