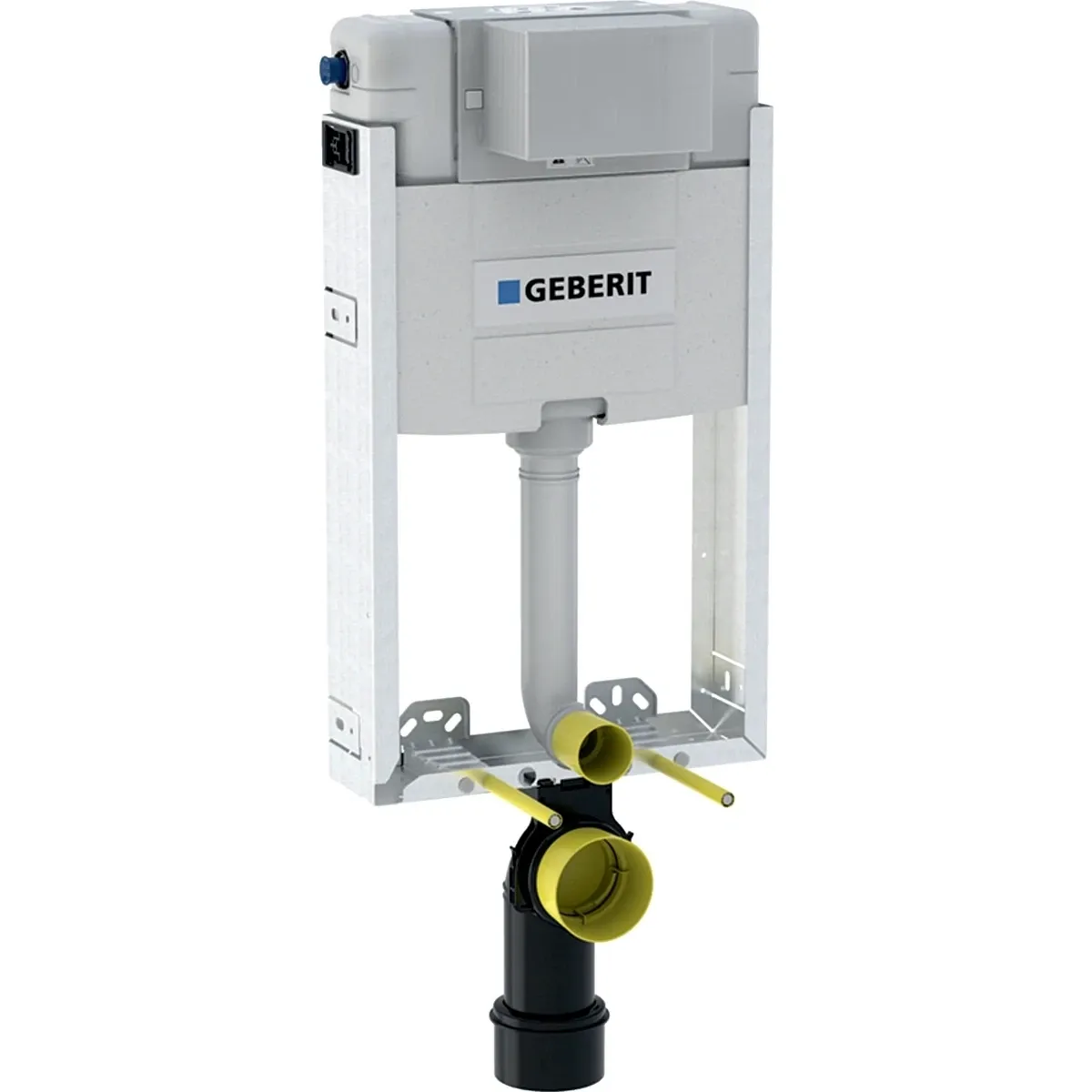

Geberit Combifix Alpha 12 cm Next 2.0 flushing unit for installation in masonry walls
SKU 110.233.00.1
$405.02
Sold out
Price incl. Sales tax (5.75%) $22.02
Product generally in stock. In case of exceptional shortage, restocking within 12 to 20 weeks.
Sold out
Save this product for later
Geberit Combifix Alpha 12 cm Next 2.0 flushing unit for installation in masonry walls
Product Details
Marque: Geberit ST
Type de produit: Bâti-support Combifix
Serie: Alpha
Epaisseur: 12 cm
Unite: Pièce
Disp.: 1
ProDis.: 1
Garant.: 10
PG: 295.661
PR: 283.51
Weight: 7.64 lbs
Geberit Combifix Alpha 12 cm Next 2.0 flushing unit for installation in masonry walls
Use
- For masonry walls
- For installation in room-height or part-height pre-walls
- For double touch rinsing
- For wall-hung WCs with connection dimensions according to EN 33:2011
Advantages of the Geberit flush mount
- Monocoque concealed tank seamless in HDPE
- The shell which constitutes the base of the hunting frame is molded in one piece by a blow molding process. The absence of welding ensures its solidity, which is an important advantage for recessed installations. For optimized reliability, the hulls are subjected, one by one, to watertightness tests. This ensures that there are no hidden defects in the hull body. It must also be able to withstand external pressure. It is therefore equipped with several reinforcements, placed from the inside, which prevent any deformation of the tank during installation.
- Sturdy steel frame
- Designed to withstand a load of 400 kg
- Easy to access functional elements
- Availability of spare parts guaranteed for 25 years
- Simple installation
- Over 50 years of experience in concealed cisterns
Geberit float valve - For silent operation
The float valve is probably the most elaborate part of the tank. Following very extensive tests carried out in our acoustic laboratory, we have identified and precisely examined the noise pollution caused by conventional float valves. Finally, the water inlet was specially designed to minimize the propagation of noise in the supply line. The extended drop tube also allows silent filling below the water level. Of acoustic class, Geberit Unifill has received the NF mark.
In order to reinforce this near-silent quality of soundproofing, Geberit trigger systems are mounted on small rubber gaskets that muffle the noise produced by the mechanical elements when pressure is applied to the control plate.
Geberit concealed cisterns - Resistance test
The tanks have been created and tested to withstand loads of 400 kg.
Features
- Galvanized mounting frame
- Mounting frame with four mounting brackets
- Connection bend fixing possible from the front without tools
- Concealed cistern with front release or top release
- Concealed cistern insulated against condensation
- Immediate post-rinse possible with factory setting
- Assembly and maintenance work on concealed cisterns without tools
- Side or rear water inlet, left
- Reservation box for inspection hatch that can be sectioned
Product details
| Dynamic pressure | 0,1 - 10 bars |
| Flush volume, factory settings | 6 and 3 L |
| Large flush volume, adjustment range | 4,5 / 6 / 7,5 L |
| Small flush volume, adjustment range | 3 to 4 L |
- Water connection Rp 1/2" - R 1/2", MF compatible, with integrated angle stop valve and handwheel
- Reservation box for inspection hatch that can be sectioned
- Connection set for WC, 90 mm
- PE-HD connection bend, 90 mm
- PE-HD adapter socket, ø 90 / 110 mm
- 2 protective caps
- 2 M12 threaded rods
- Fastening material
Alpha 12 cm flush mount installation video
Video presentation of Geberit flush toilets
